Self-levelling: It is not necessary to tediously align the device to obtain horizontal or vertical lines. Minor angular misalignments of ± 4° are compensated automatically. If the angular misalignment is greater, the device does not project any lines. Errors are prevented.
Very easy to see laser lines: It is possible, e.g., to transfer reference points from one wall to the next. Leave your spirit level and string in your tool box.
Exact 90° angle: Alignment work, such as marking 90° angles, is performed at the touch of a button. You really save time!
Lock function: You can manually switch off the self-levelling using the lock function. The laser line can then be projected at any angle.
Range: Up to 15 m (dependent on the lighting conditions), 30 m with detector
Levelling accuracy: ± 1 mm @ 5 m
Self-levelling range: 4° ± 0.5°
Horizontal accuracy: ± 1 mm @ 5 m
Vertical accuracy: ± 0.75 mm @ 3 m line length

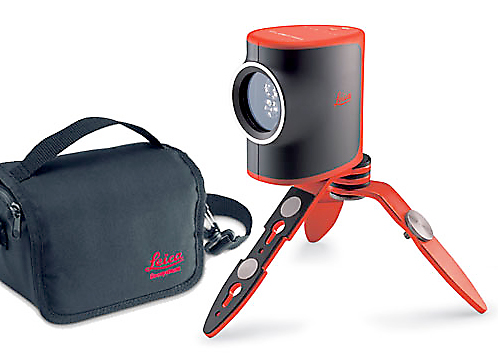

LEICA Lino L2 line laser w/magnetic multifunction adapter (tripod), ball adapter, target plate, pouch, manual, and batteries.....List price $295.00, call (562-426-1306) or write for your price!!!
Range up to 15 m depending on lighting conditions
Levelling accuracy @ 5 m ± 1.5 mm
Self-levelling range 4° ± 0.5°
Accuracy of plumb point @ 5 m ± 1.5 mm
Number of laser points 3
Beam direction up, down, forward
Laser type 635 nm, laser class II
Batteries type AA 3 × 1.5 V
Protection class splash water / dust proof IP54
Operating temperature –10 °C to 40 °C
Storage temperature –25 °C to 70 °C
Dimensions (H × D × W) 99.1 × 108.1 × 59.3 mm
Weight without batteries 310 g
Tripod thread ¼”
Delivery package, Art. No. 777 067: Target plate, Magnetic multifunction adapter, Alkaline batteries (type AA, 3 × 1.5V), and Pouch
Call (562-426-1306) or write for your price!!!
Range up to 15 m depending on lighting conditions
Levelling accuracy @ 5 m ± 1.5 mm
Self-levelling range 4° ± 0.5°
Accuracy of plumb point @ 5 m ± 1.5 mm
Number of laser points 5
Beam direction up, down, forward, right, left
Laser type 635 nm, laser class II
Batteries type AA 3 × 1.5 V
Protection class splash water / dust proof IP54
Operating temperature –10 °C to 40 °C
Storage temperature –25 °C to 70 °C
Dimensions (H × D × W) 99.1 × 108.1 × 59.3 mm
Weight without batteries 320 g
Tripod thread ¼”
Delivery package, Art. No. 777 068: Target plate, Magnetic multifunction adapter, Alkaline batteries (type AA, 3 × 1.5V), and Pouch
Call (562-426-1306) or write for your price!!!
Range up to 15 m depending on lighting conditions
Range with detector 30 m
Levelling accuracy @ 5 m ± 1.5 mm
Self-levelling range 4° ± 0.5°
Accuracy o plumb point @ 5 m ± 1.5 mm
Accuracy of horizontal line @ 5 m ± 1.5 mm
Vertical accuracy @ 3 m line length ± 0.75 mm
Number of laser points 4
Number of laser lines 2
Beam direction vertical, horizontal, up, down, right, left
Laser type 635 nm, laser class II
Batteries type AA 4 × 1.5 V
Protection class splash water/ dust proof IP54
Operating temperature -10 °C to 40 °C
Storage temperature -25 °C to 70 °C
Dimensions (H × D × W) 117.8 × 130.7 × 75.4 mm
Weight without batteries 370 g
Tripod thread ¼”
Delivery package, Art. No. 777 069: Target plate, Magnetic multifunction adapter, Alkaline batteries (type AA, 4 × 1.5V), and Pouch
Call (562-426-1306) or write for your price!!!
