- 30X telescope with quality Japanese optics
- 1" minimum display/2"accuracy

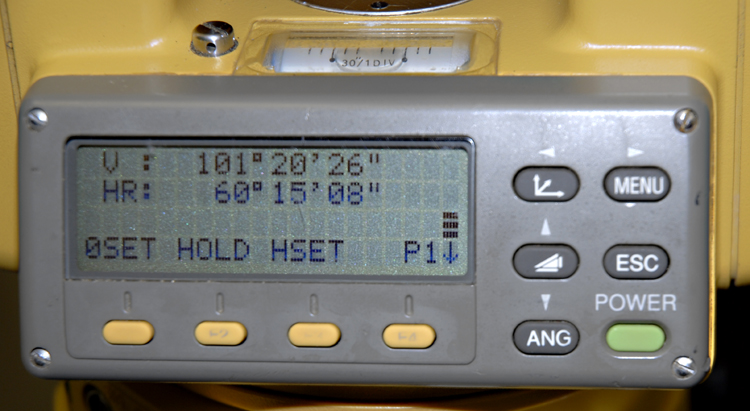

- Dual expanded keypad/display facilitates operation
- 6,600 foot range to single prism/8,900 to triple prism
- Four measurement modes: single, track, fine repeat, and course repeat
- Superior mechanical system, with two-speed horizontal and vetical tangent, and two-speed telescope focus
- Percent of grade vertical reading option
- 30 second plate vial
- On board functions include stake out, remote elevation, missing line, layout point, coordinate measurement, and inverse
- RS232C data port for easy connection to FC-4 or other data collectors
|
|
|

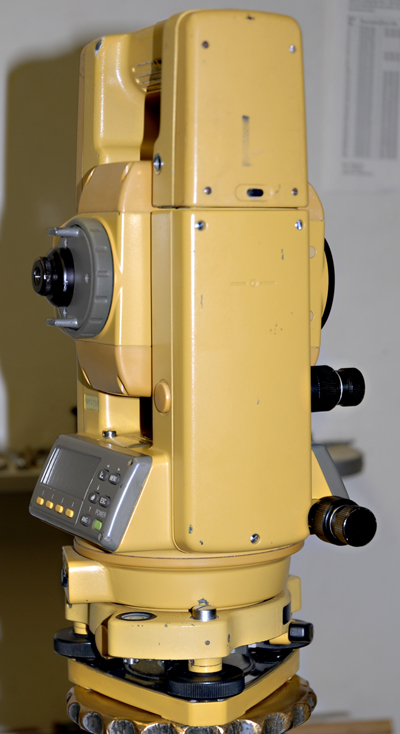

| The Topcon GTS4 is an older but robust and high-quality total station, with the features you need to perform basic measurement functions accurately. While it lacks on-board data storage capability (except as needed for inversing and storing backsight and coordinate info), an external data collector (not provided) can be easily added, if desired. This particular instrument is in excellent, carefully used cosmetic and operating condition. It has been completely serviced and calibrated in our own repair department. It also comes complete with a wide array of accessories: 2 (good) batteries, auto charger, wall charger, tool kit, data cable, solar filter, diagonal eyepiece, and original carrying case....all for just SOLD!! Call (562-426-1306) or write now for more information. **Note: we don't have a manual for this one, but we will provide a copy of the original brochure, which outlines the specs, features, and functions.
|
|
